Citronic Tuneable UHF Dual Beltpack with Wireless Mics
This Citronic Tuneable UHF Dual Beltpack with Wireless Mics is a high quality wireless mic system boasting up to 60m range.

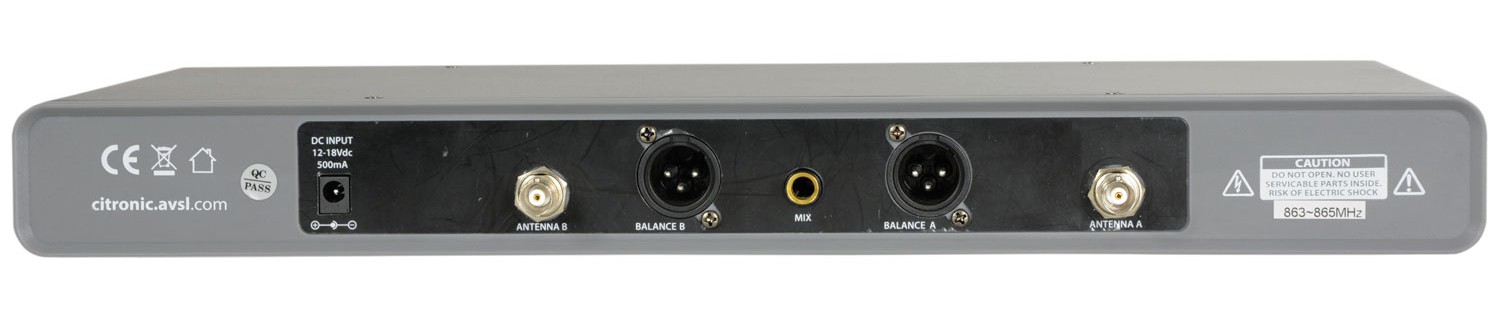

Simply made up of the tuneable UHF receiver, two belt packs plus two pairs of different style mics, the system is ready to use right out the box with the included power supply and batteries. Mount the antennae, connect your speaker via the XLR outputs on the receiver rear, power up the system and select your desired RF carrier frequency, from there the touch of a button will beam the frequency via infra-red to the microphone transmitters and away you go.
The receiver is designed to be compatible with standard 19" racks using the included mounting hardware, to provide professional looking, convenient inclusion in your live kit setup. The simple interface comprising of just a volume control for each channel plus a screen with buttons to select your RF carrier frequency keeps things uncluttered and easy to operate.
- PLL tuneable with 81 UHF frequencies
- Lavalier and Neck Belt microphones included
- Licence free operation in EU
- Pilot tone & mute circuit for stable signal
- Rack-mounting accessories included
- Supplied with mains adaptor and 4 x AA batteries
- Power supply: 12-18Vdc, 500mA (mains adaptor included)
- Batteries: 4 x AA (2 per transmitter – included)
- Carrier frequencies: 863 – 865MHz
- Range: 60m
- Signal to noise ratio: >105dB
- THD: <0.5% @ 1KHz
- Frequency response: 50Hz-18KHz ±1 dB
- Output impedance: 2.2k Ohms
- Output level: 400mV (balanced), 200mV (unbalanced)
- Dimensions : Receiver: 44 x 409 x 190mm
- Weight : Receiver: 1.37kg
- Dimensions : Transmitter: 110 x 67 x 24mm (ex antenna)
- Weight : Transmitter: 75g (no battery)
