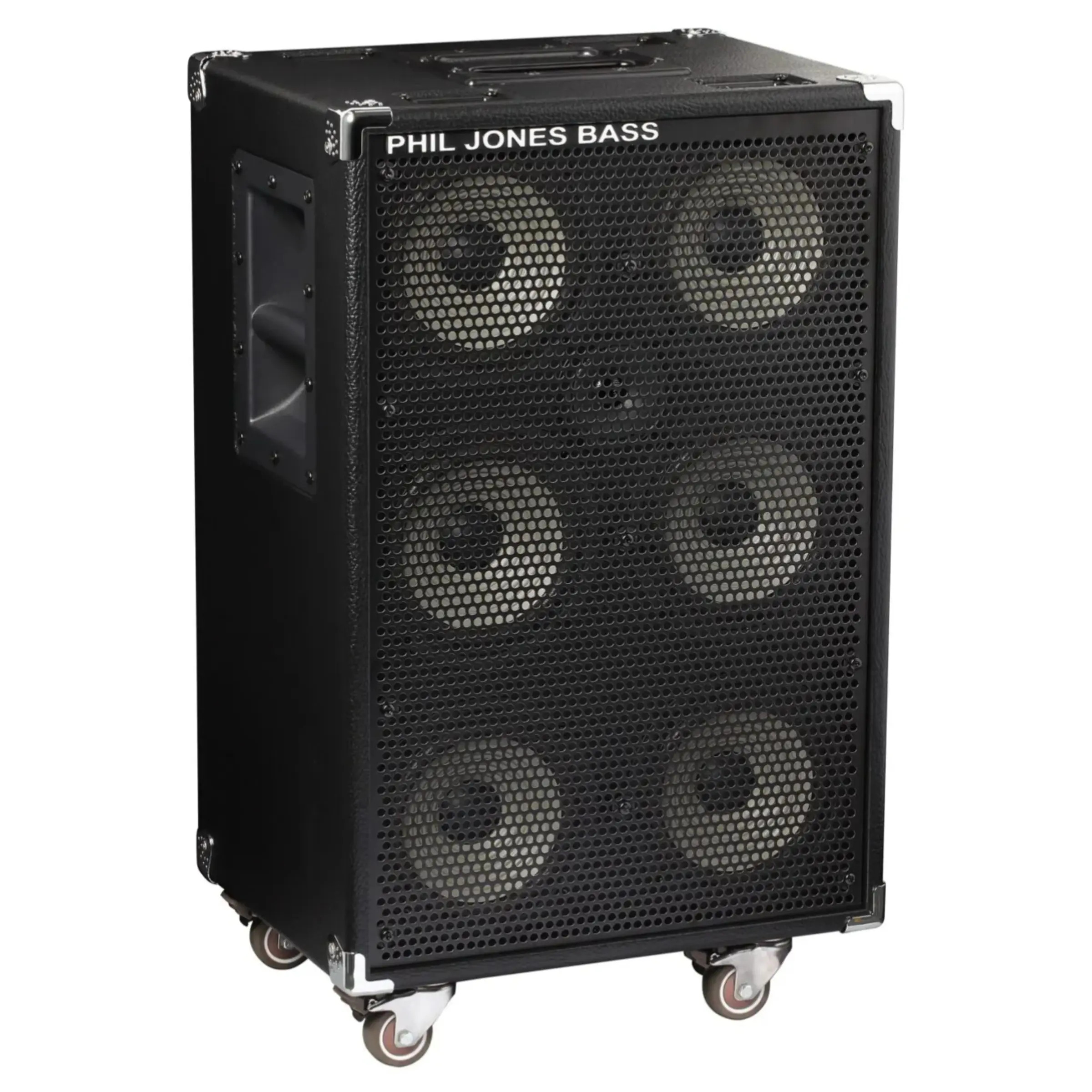

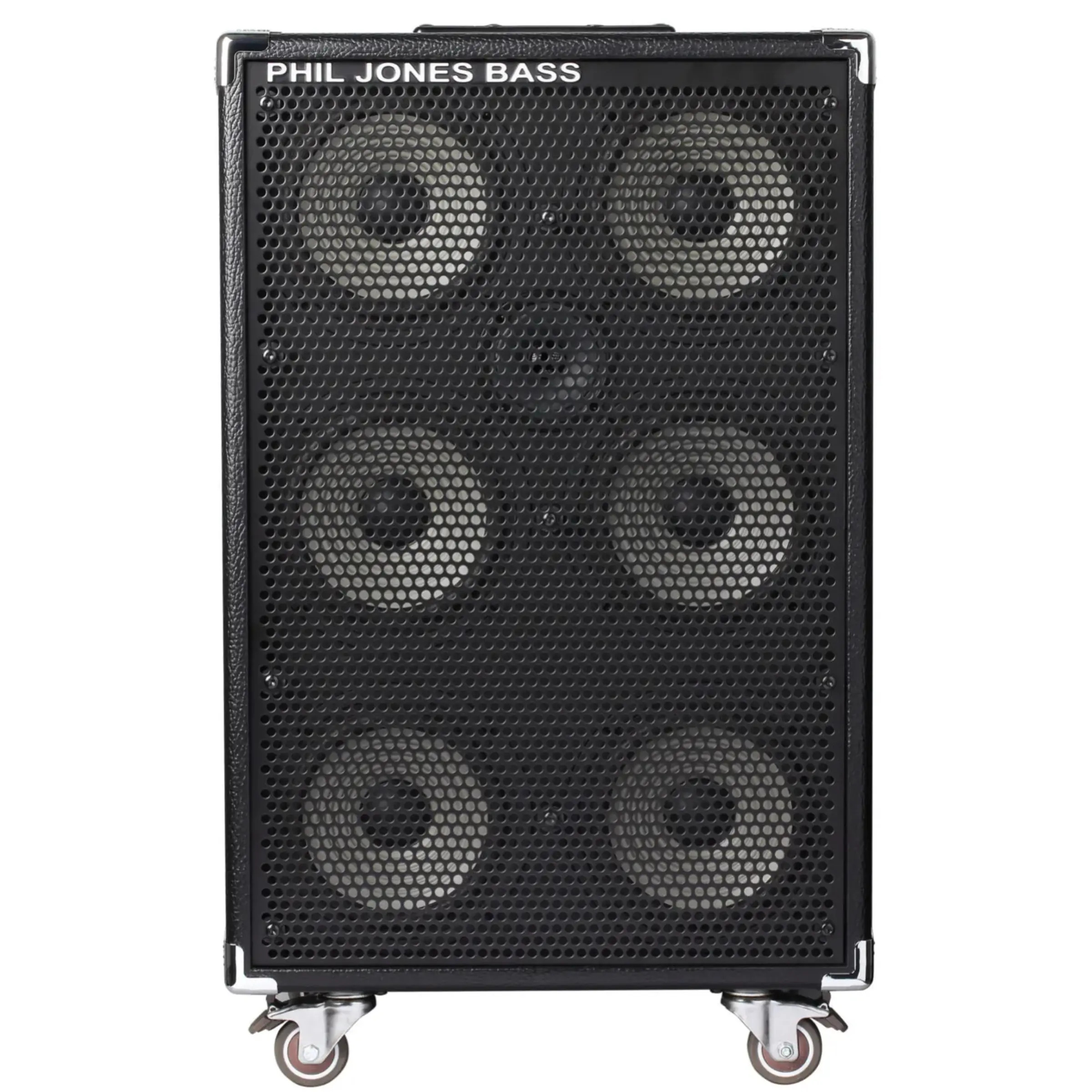

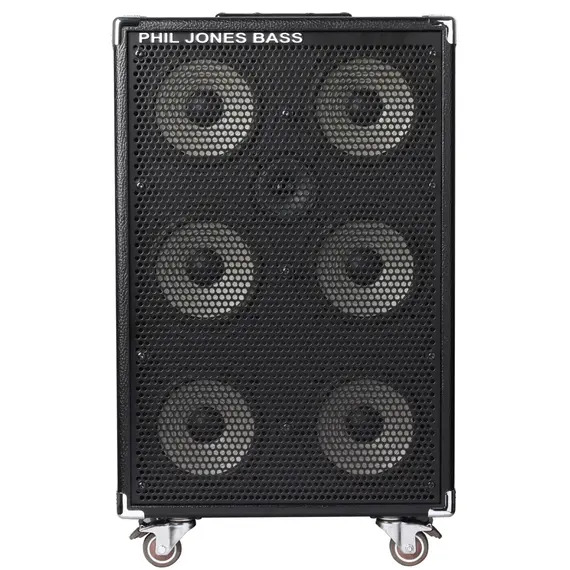

The Phil Jones Bass CAB 67 is a high-performance, no-compromise bass loudspeaker cabinet.
Scientifically Optimised Acoustic Performance
Driven by PJB's industry-leading commitment to research and development, this cabinet is built to stand out from traditional enclosures by delivering an incredibly fast, articulate, and non-boomy transient response.
It's capable of operating as an authoritative standalone rig, or transforming into a massive sonic wall when stacked.
What separates the CAB 67 from standard cabinets is the meticulous engineering behind its construction.
Phil Jones Bass utilises a full-size anechoic chamber for exact acoustic mapping and a laser scanning Doppler interferometer to study speaker cone movement in 3D across the entire audio spectrum.
This rigorous testing allows PJB to precisely tune the cabinet using advanced loudspeaker analysis programmes.
The result is a substantial reduction in unnecessary cone movement at the lowest frequencies, which simultaneously prevents muddy distortion and increases the overall low-frequency output.
Road-Ready Design with Multi-Driver Clarity
The CAB 67 features a unique array of six proprietary 7-inch PJB woofers paired with a high-accuracy 3-inch tweeter, handling an impressive 500 Watts RMS at 8 Ohms.
This specific driver configuration allows the cabinet to cover an ultra-wide frequency range of 30Hz to 25KHz, capturing the deepest fundamentals of an extended-range bass while preserving crisp upper-register harmonics.
For ease of transport, the cabinet includes built-in wheel wells, heavy-duty castors, and recessed handles, making it incredibly simple to roll into a venue or stack with other gear.
Phil Jones Bass CAB 67 Bass Cabinet Features & Specifications
Distinctive multi-driver array featuring six 7-inch proprietary PJB woofers
High-accuracy 3-inch tweeter for clear, extended high-frequency response
Power rating: 500 Watts RMS
Nominal impedance: 8 Ohms
Wide frequency response: 30Hz to 25KHz for full dynamic spectrum coverage
Precisely tuned bass-reflex housing to minimise low-end distortion and optimise output
3D laser-analysed cone design ensuring natural, uncoloured instrument translation

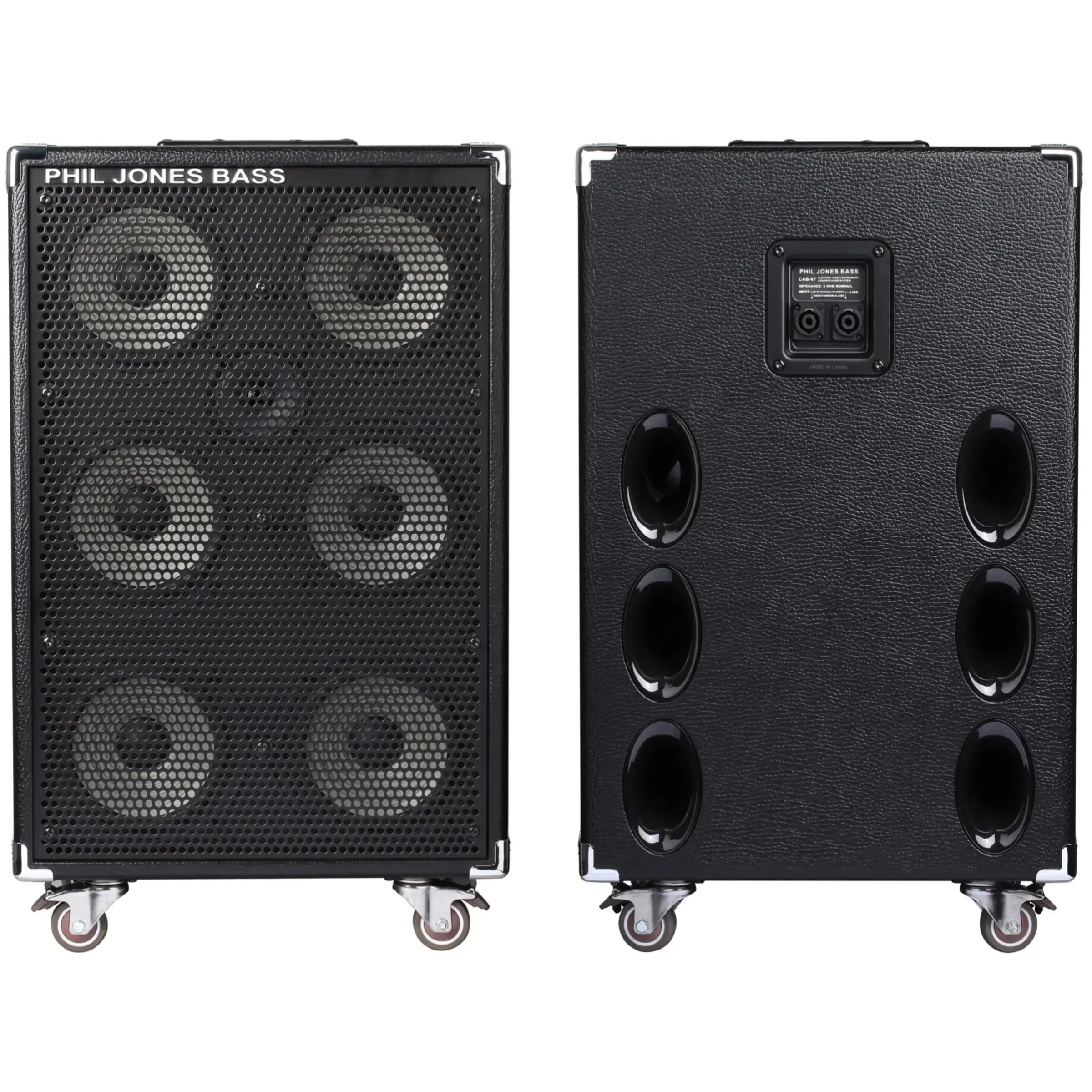

Dual genuine Neutrik NL4MP Speakon connectors for secure, airtight signal transfer
Built-in wheel wells and four heavy-duty castors for effortless stage transport
Recessed handles and rugged corner reinforcement for enhanced roadworthiness
Fits seamlessly into modular vertical stacks with integrated alignment wells
Dimensions: 415mm x 320mm x 691mm (16.4" x 12.6" x 27.2")
Weight: 24.5 kg (54 lbs), keeping a powerhouse configuration highly manageable
Sleek black finish suitable for any stage or studio aesthetic
Includes a custom-fit PJB protective slipcover to shield against scratches and dust
