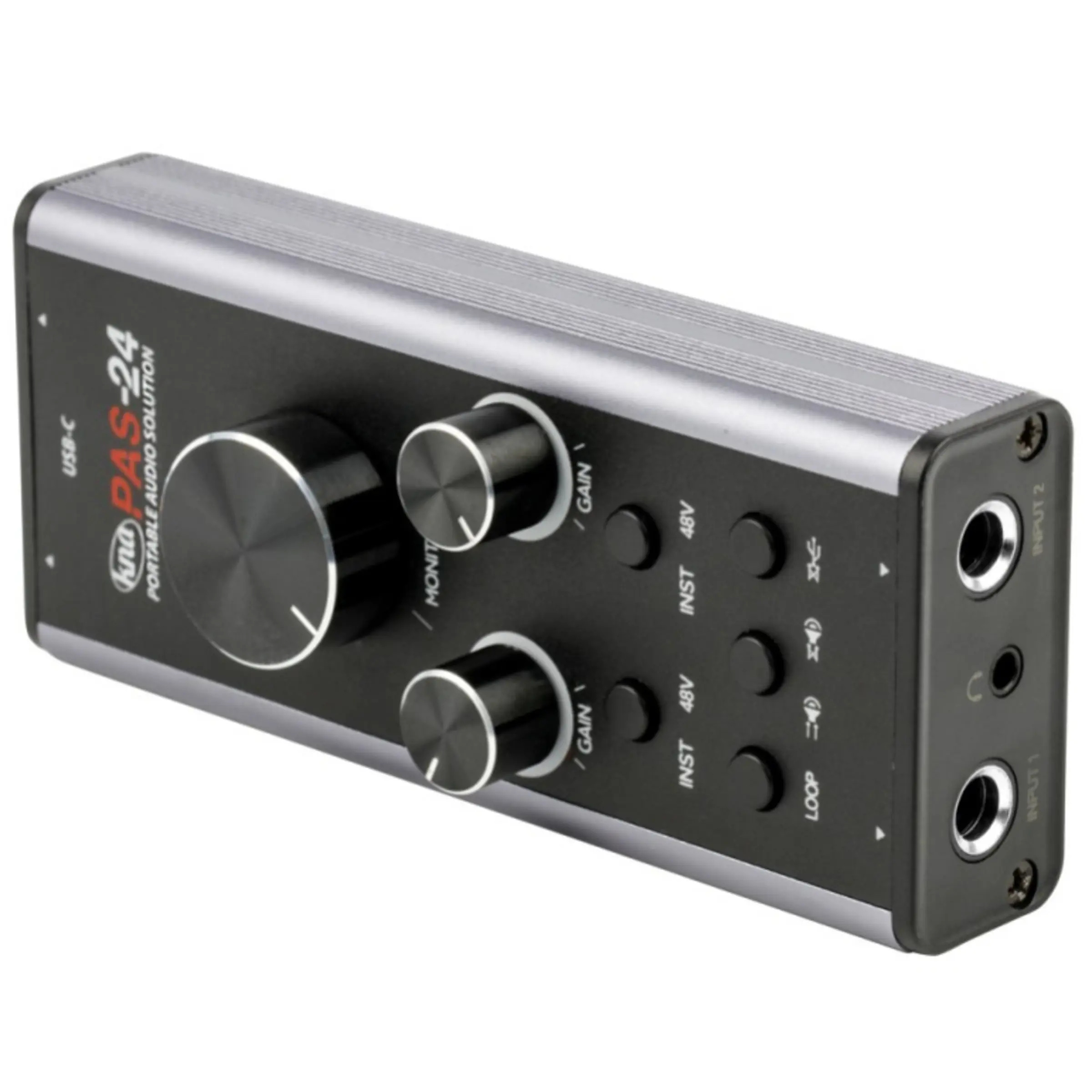

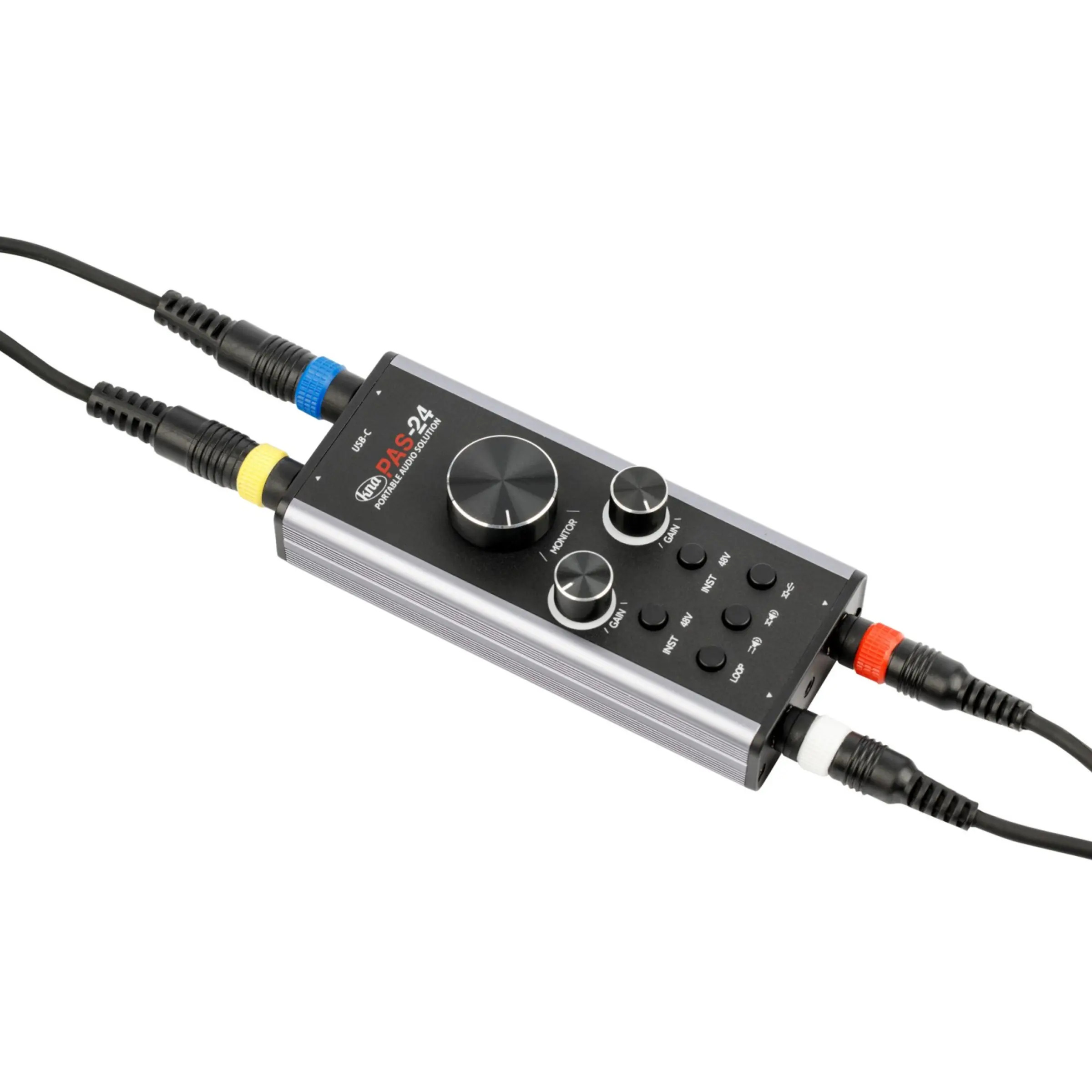

The KNA PAS-24 is a high-performance, bus-powered audio interface designed specifically for musicians, producers, and streamers who require professional-grade recording and playback capabilities on the move.
High-Resolution Conversion & Versatile Inputs
Enclosed in a compact, portable format that is smaller than a smartphone, this versatile device delivers superior sound quality, seamless connectivity, and intuitive control, making it an excellent choice whether you are working in a studio, on the road, or from home.
Engineered to meet industry standards, the PAS-24 records at up to 24-bit/192kHz and utilizes an internal low-jitter crystal oscillator to ensure precise, data-loss-free digital conversion.
It features a 110dB dynamic range on input and 109dB on output to capture performances in incredible detail.

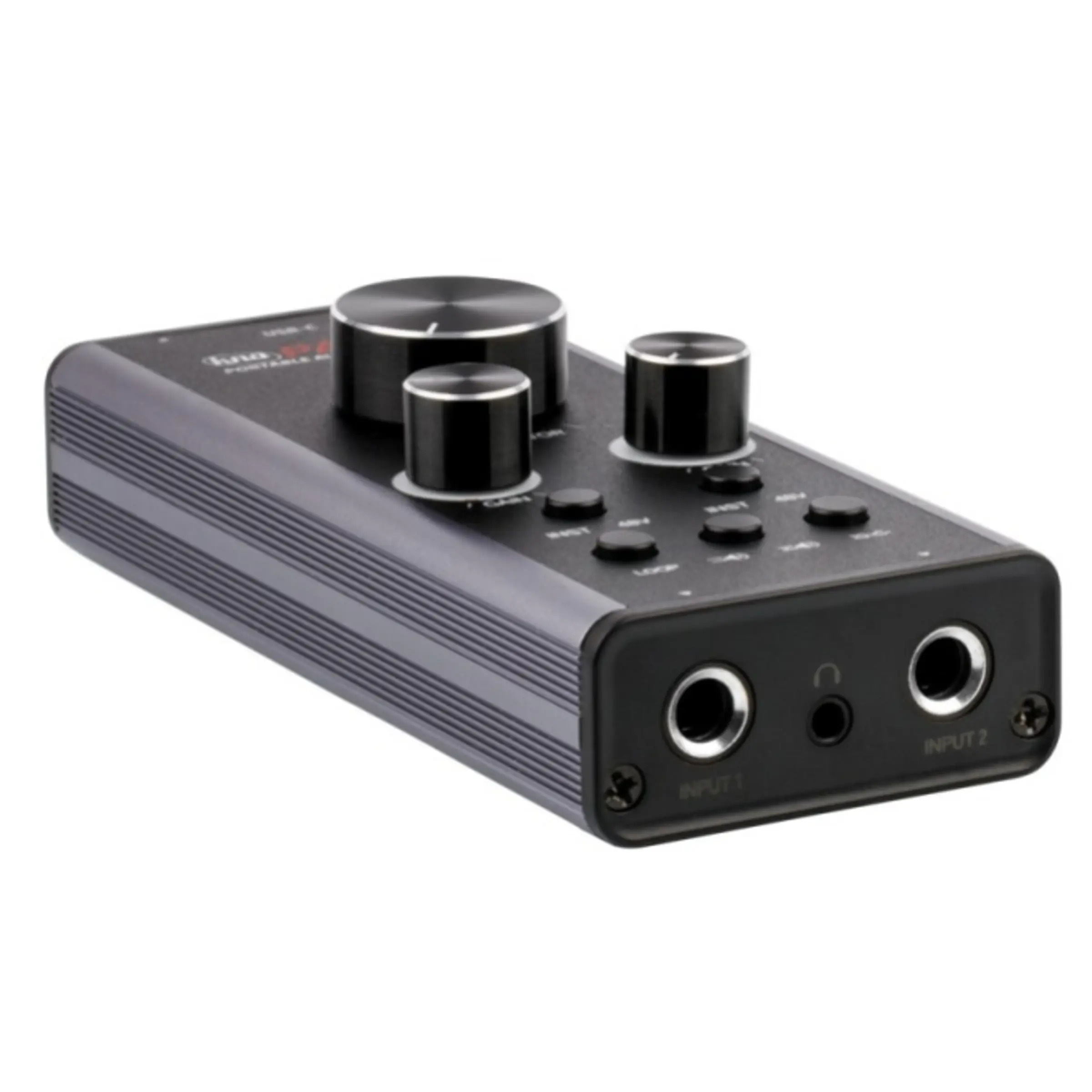

For recording, the interface offers two independent input channels compatible with 1/4" TRS and XLR connections.
Its multi-mode preamps support Line, Mic, Hi-Z (Instrument), and Phantom Power modes, giving creators the flexibility to connect dynamic or condenser microphones, guitars, and line-level sources with optimal signal strength and impedance.
Zero-Latency Monitoring & Flexible Integration
For playback and monitoring, the PAS-24 is equipped with dual 1/8" TRS balanced outputs to connect studio monitors, mixers, or summing consoles, along with a dedicated 1/8" TRS headphone jack for precise, detailed listening.
Creators can take advantage of direct monitoring and loopback functions for zero-latency audio tracking, while a USB mix control allows for blending live inputs with DAW playback.

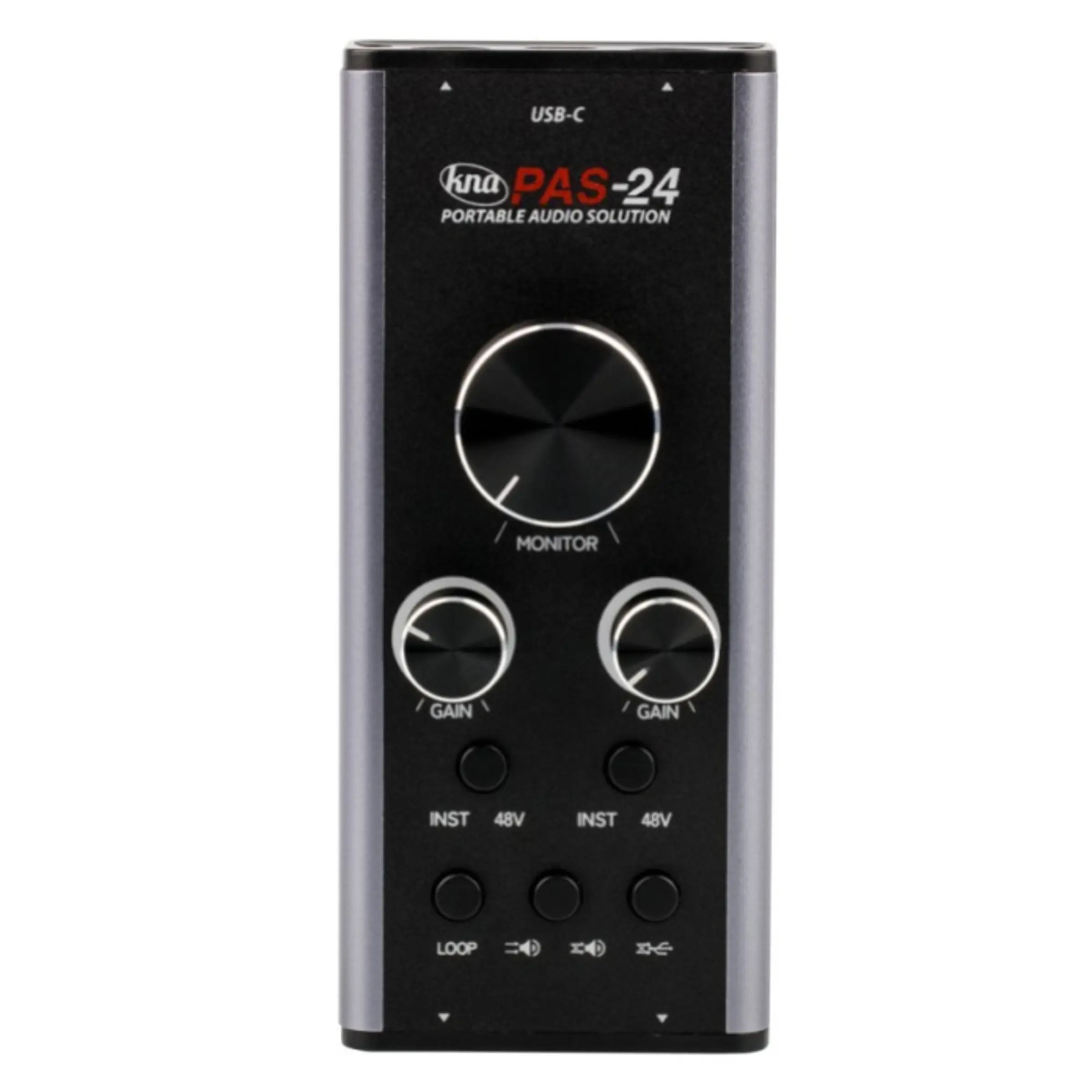

Level adjustments are managed via independent GAIN 1 & GAIN 2 controls featuring halo LED indicators.
To fit various workflows, the device includes dual USB-C ports—one for data transfer and a second for independent power—allowing full compatibility with low-power devices like smartphones and tablets.
KNA PAS24 Portable Audio Interface Features & Specifications
High-performance, bus-powered audio interface in an ultra-portable size smaller than a smartphone
High-resolution recording and playback at up to 24-bit/192kHz
Internal low-jitter crystal oscillator ensures precise, data-loss-free digital conversion
Dynamic Range: 110dB on input channels / 109dB on output channels
Two independent input channels with universal 1/4" TRS and XLR compatibility
Multi-mode preamps supporting Line, Mic, Hi-Z (Instrument), and Phantom Power configurations
Dual 1/8" TRS balanced outputs for studio monitors, mixers, or summing consoles
Dedicated 1/8" TRS headphone output for precise and detailed monitoring
Direct monitoring and loopback functions provide real-time tracking with zero latency
USB mix control blends live input with DAW playback for optimal monitoring balance
Independent GAIN 1 and GAIN 2 control knobs equipped with halo LED level indicators
Dual USB-C connectivity: One dedicated data transfer port and one independent power port
Fully compatible with smartphones, tablets, and low-power devices
Driver-free operation on iOS devices; downloadable drivers available for Android devices
Ideal for mobile musicians, producers, and streamers looking for a complete travel solution
