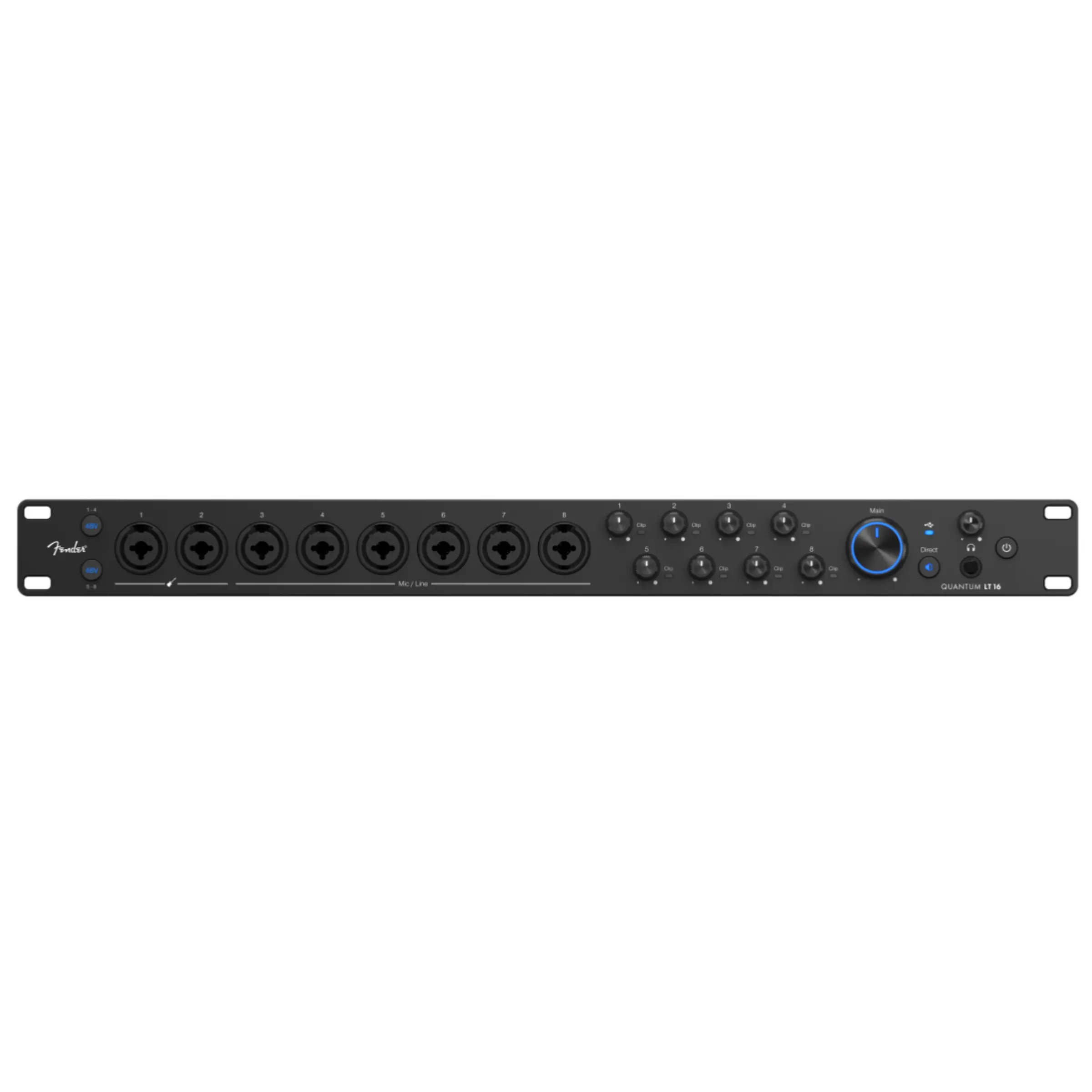

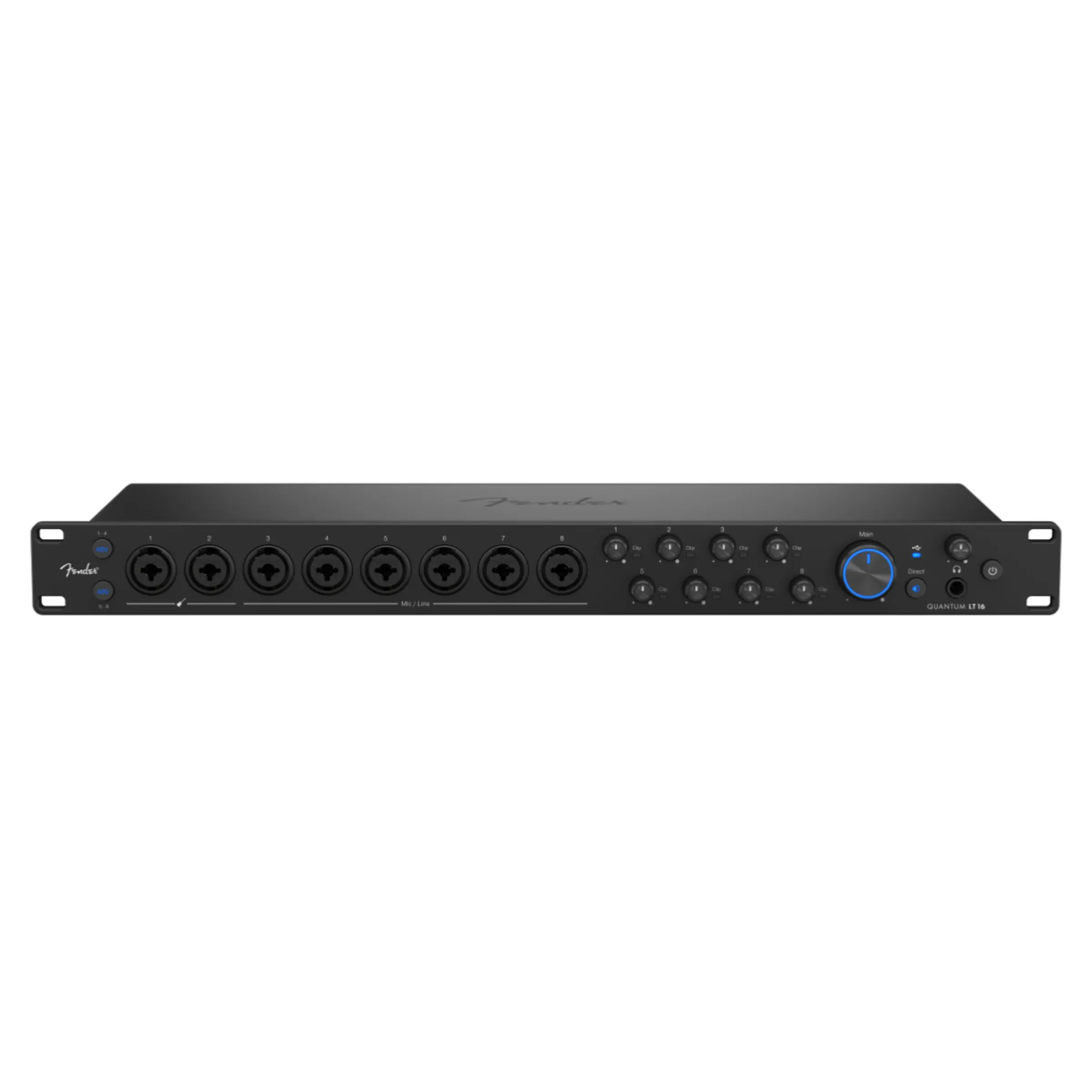

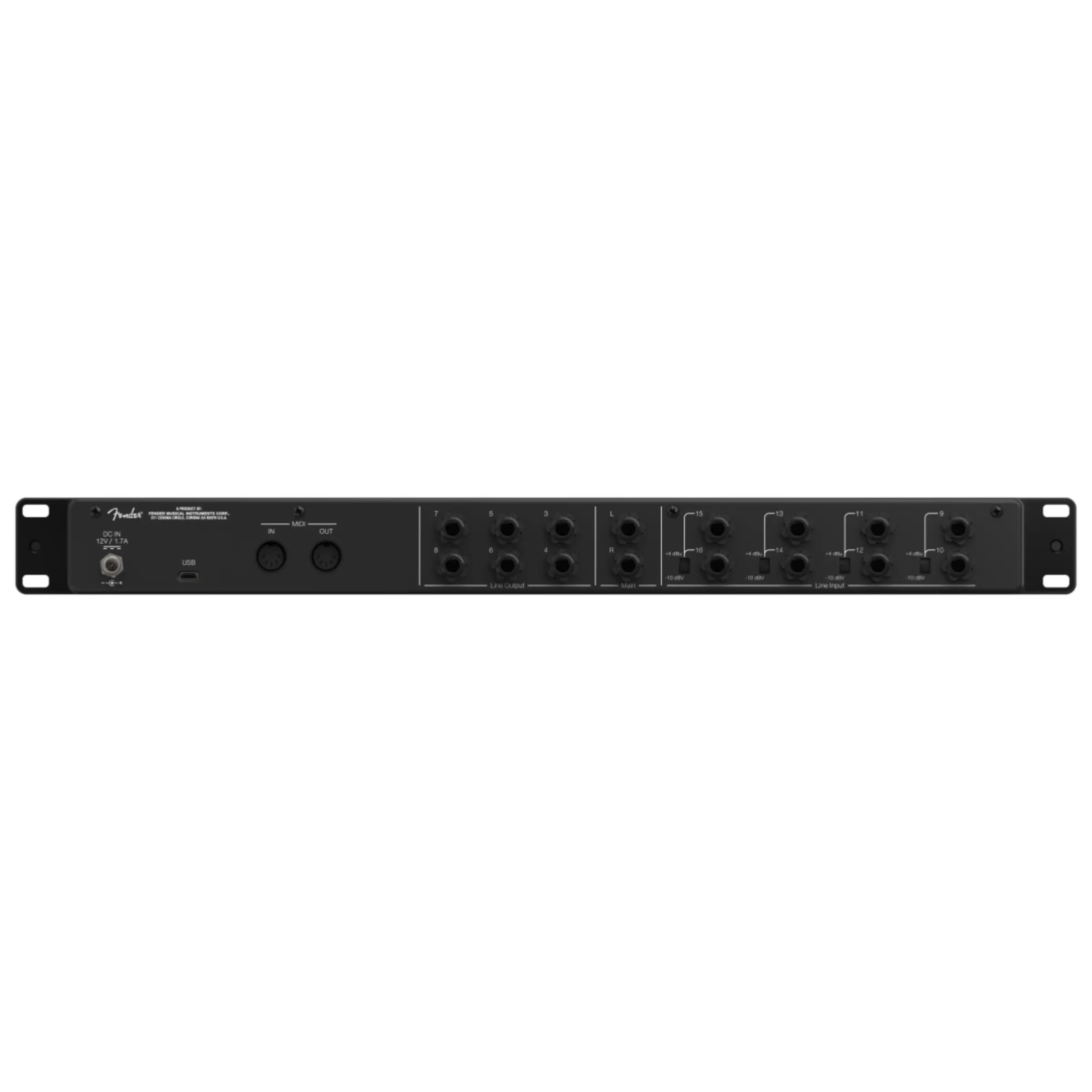

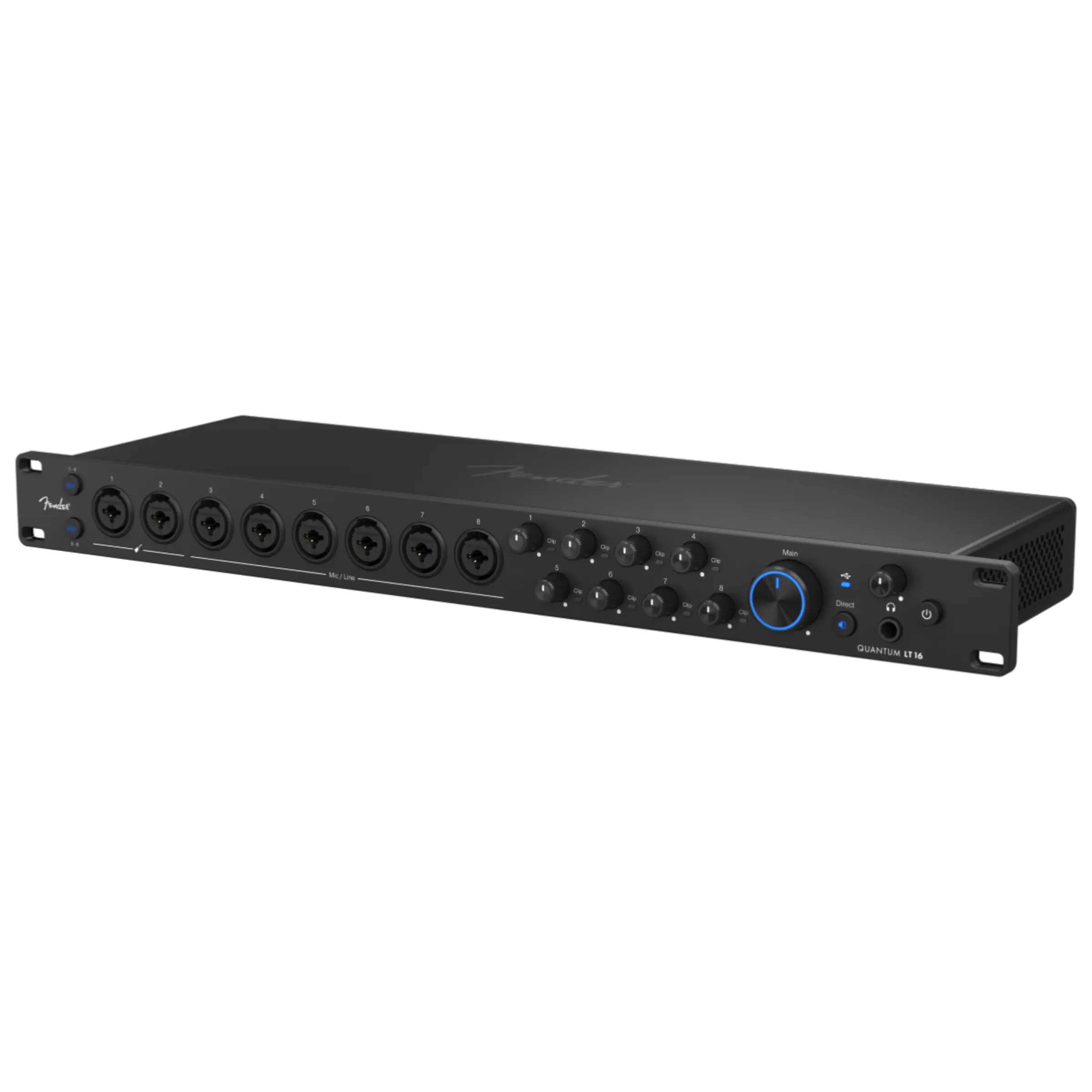

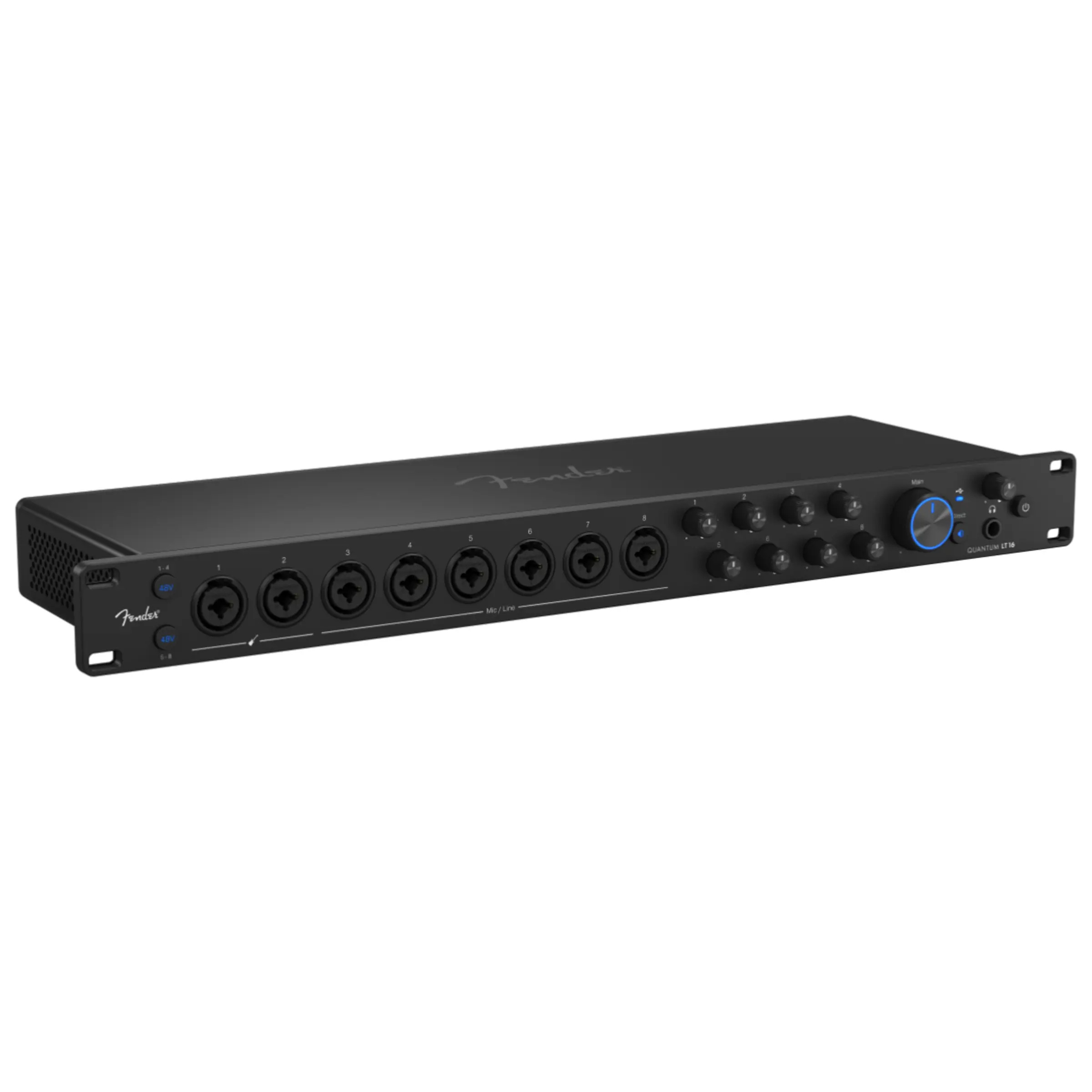

The Fender Quantum LT16 USB-C Audio Interface is the flagship of Fender's Quantum LT line, ideal for multi-instrument setups and ultimate flexibility.
Inputs, Outputs & Preamps
With eight MAX-HD mic preamps, you can be sure that the Quantum LT16 will provide clean, high 75 dB gain for any project, maintaining the original sound of the instrument with high-fidelity.
Fourteen TRS analog line inputs allow you to easily integrate any outboard gear (such as mixers, preamps and synthesisers), helping you to unlock your creative potential without overcomplicating your workflow.
Not only that, but thanks to the 5-pin MIDI I/O, you can easily connect drum machines, keyboards and hardware sequencers without any need for external MIDI interfaces.
Standalone 'Mic Pre Mode' allows you to use the LT16 as an 8-channel standalone, an excellent solution to expanding your studio's input options.
Mixing features
Possibilities are endless with the Fender Quantum LT16 thanks to a combination of mixing features, including loopback audio for streaming and flexible mix routing and standalone 'Mixer Mode' for DAW-free mixing.
Specifications
- 16 inputs, including 2x XLR combo Mic/Inst, 6x XLR Combo Mic/Line, 8x TRS Line
- 8x 1/4 TRS Balanced Line Out
- USB-C connectivity
- 1/4" Stereo headphone jack with 114 dB headphone outputs dynamic range and 20hz frequency response
- 24 bit digital audio bit depth
- 115 dB digital audio dynamic range
- Custom low-latency drivers (macOS/Windows)
- 8x MAX-HD microphone preamps with 75 dB grain range
- Loopback audio for streaming and flexible mix routing
- Standalone 'Mixer Mode' for DAW-free mixing
- Standalone 'Mic Pre Mode' for use as an 8-channel mic preamp
